  Springfield Interchange Project Photos - June 2003

The following 11 photos show various aerial views of the Springfield Interchange Improvement Project (SIIP) construction.

These photos were taken on June 14, 2003, by the Virginia Department of Transportation, and are posted here with their permission. Roads to the Future utilized Adobe PhotoDeluxe Business Edition to sharpen and brighten all of the photos. Click on the photo to get a large version of the photo. In later versions of Netscape and Internet Explorer, you probably will need to use Full Screen mode (the F11 key can be utilized to swap back and forth between Full Screen and Regular) to see the full size of the large photo without browser-induced image shrinkage. The large photos have sizes ranging from 229 to 296 kilobytes, with most of them being under 261 kilobytes.

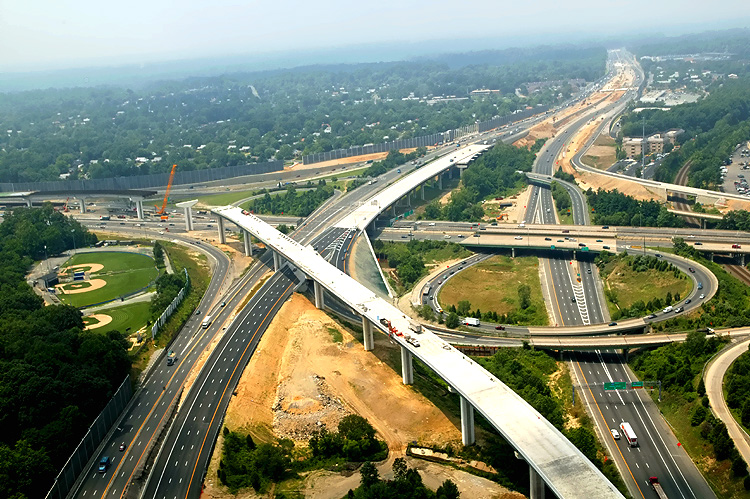

I-95/I-395/I-495 interchange construction, looking west toward Tysons Corner. The Capital Beltway runs from bottom to top, and Shirley Highway runs from left to right. Shirley Highway is I-95 south of the Beltway, and is I-395 north of the Beltway. The Capital Beltway is I-495 throughout, and carries I-95 also east of Shirley Highway.

The elevated ramp under construction in the foreground is the B-610 bridge that will be the 2-lane express flyover ramp (the I-95 southbound through route) from the Beltway Inner Loop (from Wilson Bridge) to I-95 south. The B-610 bridge is 4,870 feet long.

In the center of the photo is the B-613 bridge that is part of the relocated Beltway Outer Loop roadway. The B-613 bridge is 1,395 feet long. The relocated Beltway Outer Loop roadway opened to traffic a week before this photo was taken.

I-95/I-395/I-495 interchange construction, slightly different vantage point from previous photo.

Phase 4 of the SIIP involved these three major portions: constructing the I-95 southbound roadway from the Capital Beltway to the VA-7900 Franconia-Springfield Parkway, constructing a 4,870-foot-long flyover bridge for traffic heading west on I-495 to I-95 south (the I-95 southbound through route), and widening the Capital Beltway from I-395 east to VA-613 Van Dorn Street. Phase 4 was placed under construction in November 2000, and was completed in October 2004 at a cost of $178.5 million.

Phases 4 and 5 of the SIIP included extensive construction of sound barrier walls along the western, southern and eastern edges of the interchange and approaches.

I-95/I-395/I-495 interchange construction, looking south toward Richmond. The Beltway runs left-right, and Shirley Highway runs up-down. Shirley Highway (I-95 south of the Beltway and I-395 north of the Beltway) has 3 mainline lanes each way and a 2-lane reversible roadway for high occupancy vehicle (HOV) traffic, and the reversible roadway is located between the two general purpose roadways. The I-95/VA-644 interchange is in the distance.

Notice in the lower right of the photo, the new realigned 2-lane ramp from I-395 southbound to I-495 westbound, and the original ramp (now closed) to the left of the new ramp. The ramp was relocated to provide space for the larger interchange complex.

In the middle left of the photo, is the elevated ramp under construction with the B-610 bridge that will be the 2-lane express flyover ramp (the I-95 southbound through route) from the Beltway Inner Loop (from Wilson Bridge) to I-95 south.

In the center of the photo is the B-613 bridge that is part of the relocated Beltway Outer Loop roadway.

I-95/I-395/I-495 interchange construction, looking south toward Richmond. The Beltway runs left-right, and Shirley Highway runs lower left to upper center. The I-95/VA-644 interchange (rebuilt in SIIP Phases 2 and 3) is in the distance.

Notice in the lower part of the photo, the new realigned 2-lane ramp from I-395 southbound to I-495 westbound, and the original ramp (now closed) to the left of the new ramp.

In the middle left of the photo, is the elevated ramp under construction with the B-610 bridge that will be the 2-lane express flyover ramp (the I-95 southbound through route) from the Beltway Inner Loop (from Wilson Bridge) to I-95 south.

In the center of the photo is the B-613 bridge that is part of the relocated Beltway Outer Loop roadway.

I-95/I-395/I-495 interchange construction, looking east along the Beltway toward Shirley Highway and the I-95/I-395/I-495 interchange. Notice the sound barrier walls under construction along the right edge of the interchange. Notice in the distance the elevated ramp and bridge under construction that will be the 2-lane express flyover ramp (the I-95 southbound through route) from the Beltway Inner Loop (from Wilson Bridge) to I-95 south.

In the center of the photo is the B-613 bridge that is part of the relocated Beltway Outer Loop roadway, which opened to traffic a week before this photo was taken.

The Beltway Outer Loop roadway was relocated in the interchange area, inboard of its original location west of the interchange, to provide roadside space for wide high capacity ramps to be built between the Outer Loop and Shirley Highway (I-95 and I-395), without needing expensive right-of-way acquisition of many adjacent homes and apartment buildings; and outboard of its original location east of the interchange, to provide median space for the pair of elevated ramps with the flyover bridges that connect the I-95 through traffic movements between the I-95/I-495 Beltway and I-95 Shirley Highway.

The original Outer Loop bridge over Shirley Highway remained in place with one lane open to carry the loop ramp traffic from southbound I-395 to the Beltway Outer Loop, until the 1-lane flyover ramp from southbound I-395 to the Beltway Outer Loop (toward Wilson Bridge) opened to traffic in October 2005.

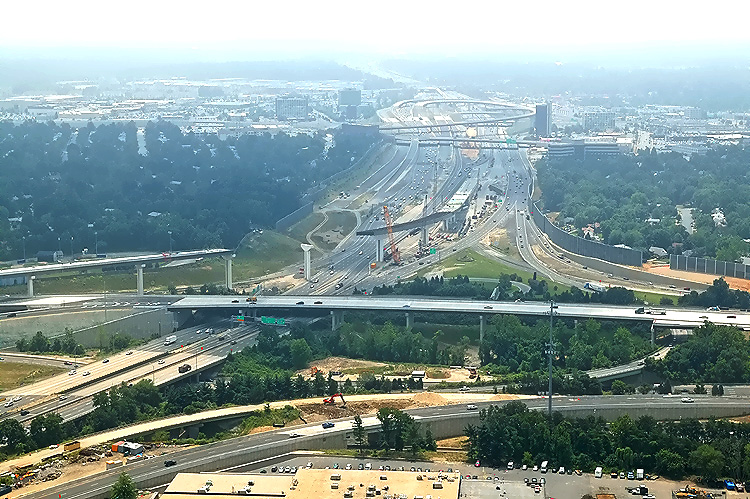

I-95/I-395/I-495 interchange construction, looking east along the Beltway toward Shirley Highway and the I-95/I-395/I-495 interchange.

In the center of the photo is the B-613 bridge that is part of the relocated Beltway Outer Loop roadway, which opened to traffic a week before this photo was taken.

Phase 5 of the SIIP involved widening the Beltway west of I-95, relocating the Outer Loop of the Beltway in the I-95 interchange area, and realignment of the ramp from I-395 southbound to I-495 westbound, and widening the Capital Beltway from I-395 westward to near VA-620 Braddock Road. Phase 5 was placed under construction in August of 2001, and was completed in May 2004 at a cost of $95.5 million.

Phases 4 and 5 of the SIIP included extensive construction of sound barrier walls along the western, southern and eastern edges of the interchange and approaches. Notice the sound barrier walls under construction along the edge of the interchange.

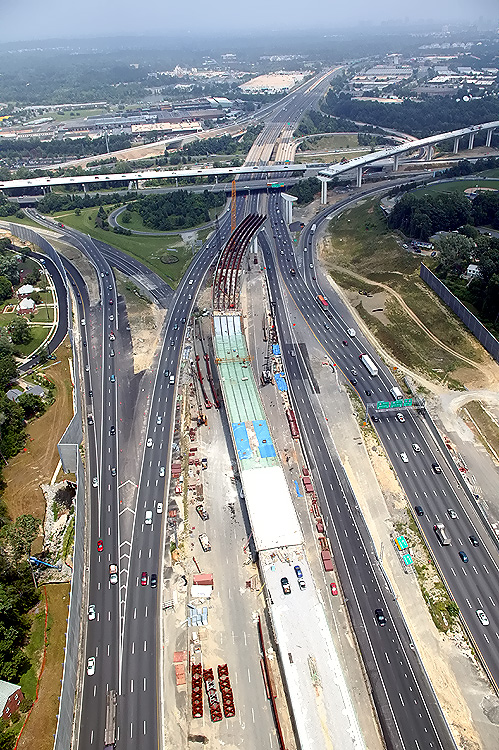

I-95/I-395/I-495 interchange construction, looking north from over Springfield, along Shirley Highway (I-95 and I-395). The Beltway runs left to right in the top of the photo.

Southbound mainline roadways and ramps have been relocated to provide space to build the southern part of the 2-lane express flyover ramp (the I-95 southbound through route) under construction from the Beltway Inner Loop (from Wilson Bridge) to I-95 south. The elevated ramp under construction is the B-610 bridge that will be that 2-lane express flyover ramp. The B-610 bridge is 4,870 feet long.

Notice the sound barrier walls under construction along the edges of the interchange.

I-95/I-395/I-495 interchange construction, looking north from over Springfield, along Shirley Highway (I-95 and I-395). The Beltway runs left to right in the top of the photo.

Southbound mainline roadways and ramps have been relocated to provide space to build the southern part of the 2-lane express flyover ramp (the I-95 southbound through route) under construction from the Beltway Inner Loop (from Wilson Bridge) to I-95 south.

I-95/I-395/I-495 interchange construction, looking east along the I-95/I-495 Capital Beltway toward Alexandria.

The elevated ramp under construction in the foreground is the B-610 bridge that will be the 2-lane express flyover ramp (the I-95 southbound through route) from the Beltway Inner Loop (from Wilson Bridge) to I-95 south.

Notice in the middle of the photo, the temporary roadway for the Beltway Inner Loop which passes under the southbound I-95 flyover bridge under construction. About 1/4 of a mile of the Inner Loop roadway is being reconstructed for the transition to the flyover, and the temporary roadway is carrying the traffic while the reconstruction is underway.

In the distance is the Beltway bridge over the CSXT and WMATA railroads, and beyond that is the VA-613 Van Dorn Street interchange with the Beltway.

I-95/I-395/I-495 interchange construction, looking east along the I-95/I-495 Capital Beltway toward Alexandria.

The elevated ramp under construction to the left is the B-610 bridge that will be the 2-lane express flyover ramp (the I-95 southbound through route) from the Beltway Inner Loop (from Wilson Bridge) to I-95 south.

Notice in the middle of the photo, the temporary roadway for the Beltway Inner Loop which passes under the southbound I-95 flyover bridge under construction. About 1/4 of a mile of the Inner Loop roadway is being reconstructed for the transition to the flyover, and the temporary roadway is carrying the traffic while the reconstruction is underway.

In the distance is the Beltway bridge over the CSXT and WMATA railroads, and beyond that is the VA-613 Van Dorn Street interchange with the Beltway.

I-95/I-495 Beltway construction, widening the east approach to the Springfield Interchange. Looking north.

The bridge in the mainline of the Beltway, passes over the 2-track CSXT railroad mainline (which carries freight trains, Amtrak trains, and Virginia Railway Express commuter trains), and passes over the 2-track WMATA Metrorail Franconia/Springfield Route (Blue Line trains). The pre-existing pair of 4-lane bridges is being replaced by a pair of longer bridges that will each have 7 lanes. The new Outer Loop bridge has been constructed, and Beltway traffic is temporarily operating there with 4 lanes each way while the pre-existing Inner Loop bridge is demolished and a new Inner Loop bridge is being built. The replacement of these bridges was tedious due to railroad regulations that limited construction to only a few hours per day. The new bridge (B-635) has 4 spans, one over each railroad, and two to provide storm drainage.  The B-635 bridge is 507 feet long.
